Overview
➤Impressed Current Cathodic Protection(ICCP)
➤Marine Growth Prevention System(MGPS)
Impressed Current Cathodic Protection(ICCP)

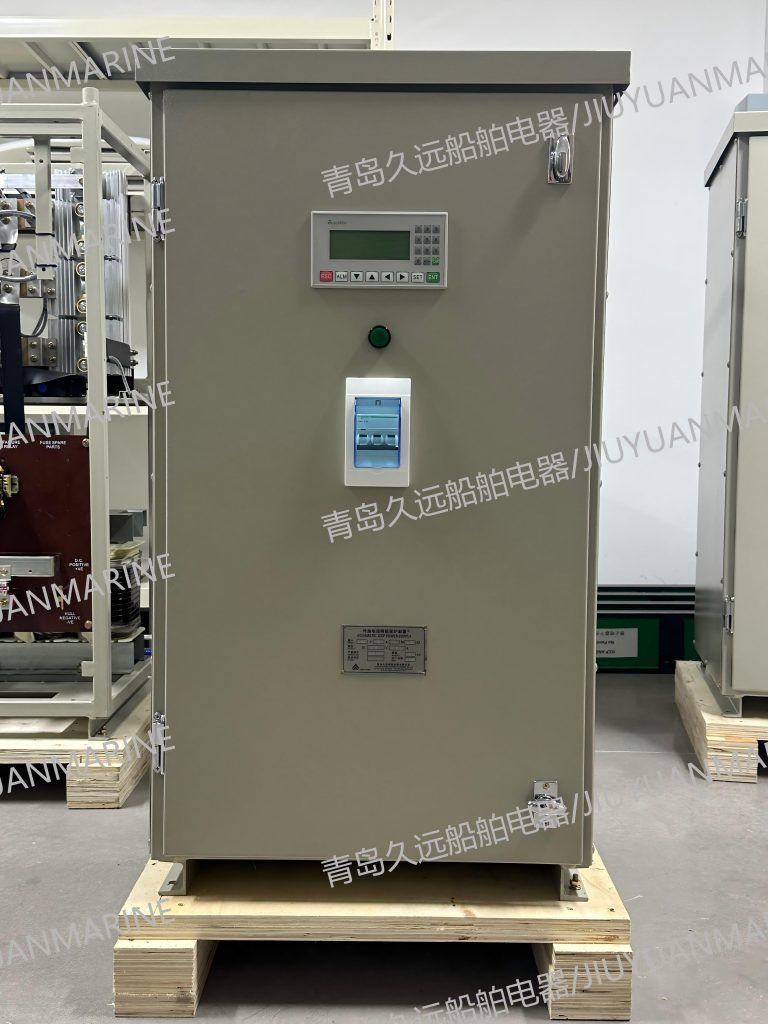

ICCP Control Cabinet
Core anti-corrosion controller for ships and offshore facilities, the ICCP cabinet is built for marine use. It supplies adjustable stable DC current to protect hull steel, stern shafts and propellers. With constant potential/current dual modes, it features auto regulation, fault diagnosis, data logging and remote monitoring. It sustains steady protective potential to prevent corrosion and marine fouling, securing vessel operation and prolonging equipment lifespan.
Multiple options: 20A/40A/80A/120A

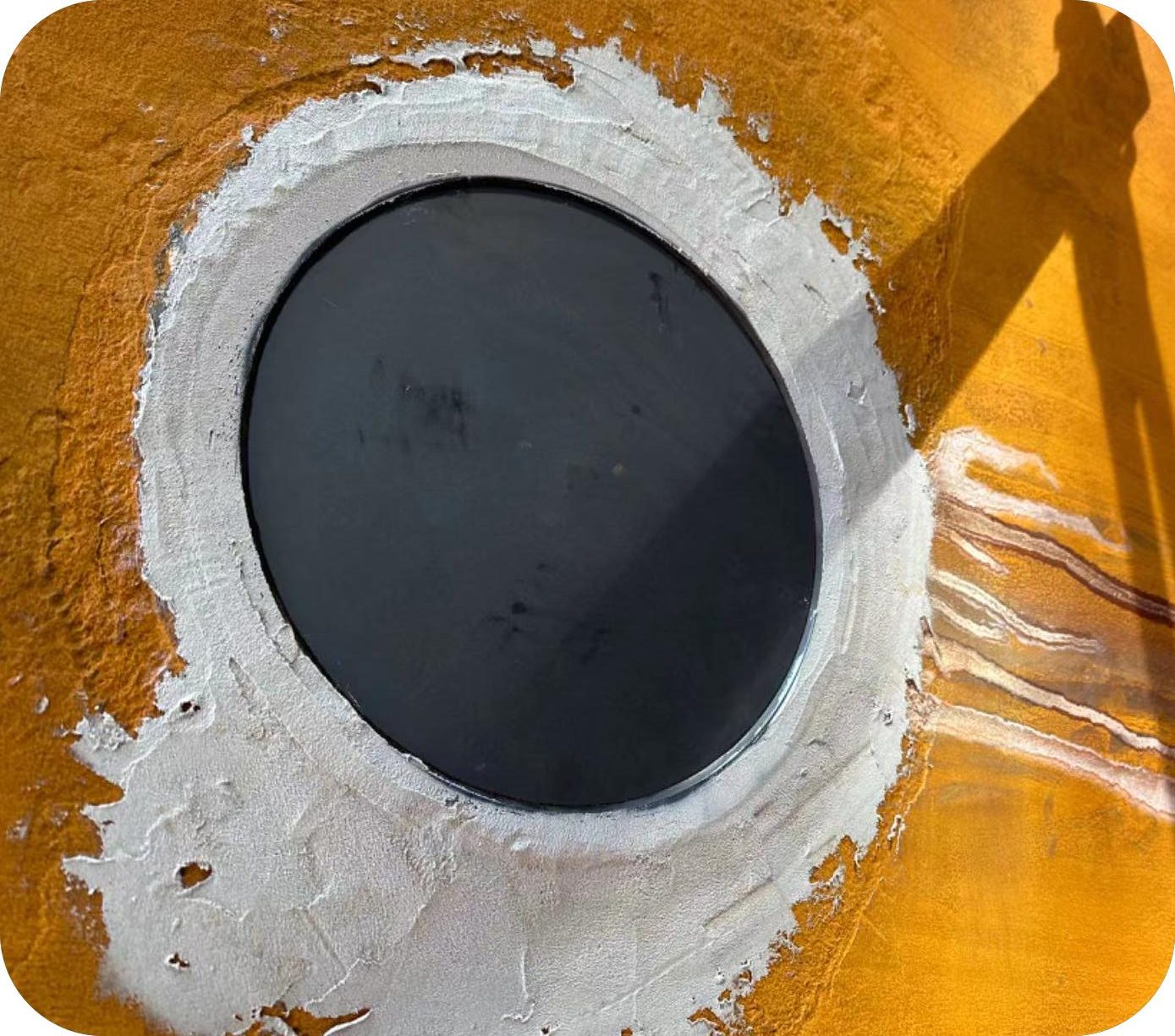

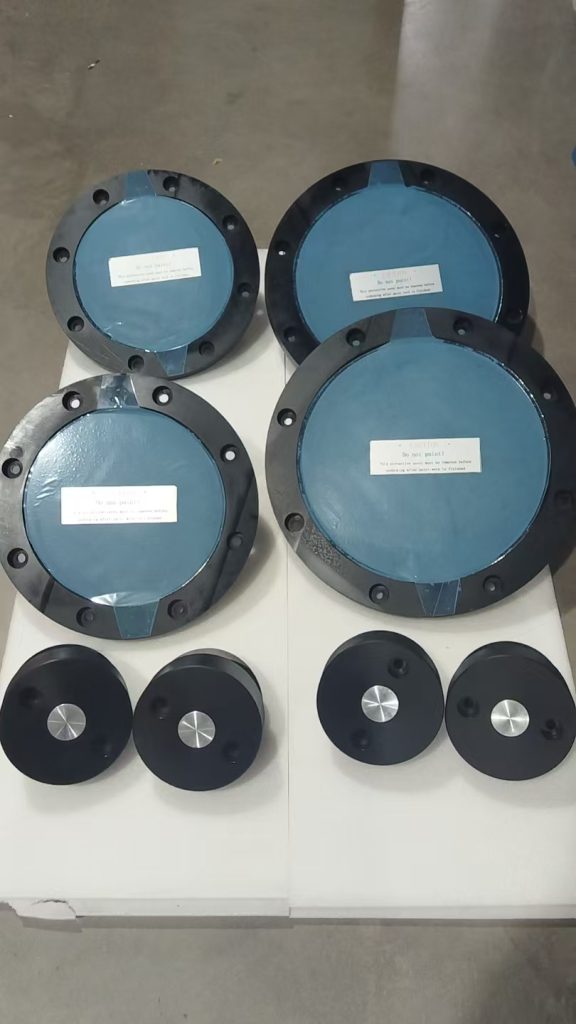

Auxiliary Anode
Key ICCP parts, auxiliary anodes transmit stable protective current in seawater to form full circuits for hull and offshore corrosion prevention. Made of high anti-corrosion material, they provide uniform current, low loss and strong seawater resistance with long service life. Matched with control cabinets, they enhance protection and extend equipment service life.
Product Types: Cantilever Auxiliary Anode, Mounted Auxiliary Anode, Flange Auxiliary Anode, Deep Well Auxiliary Anode

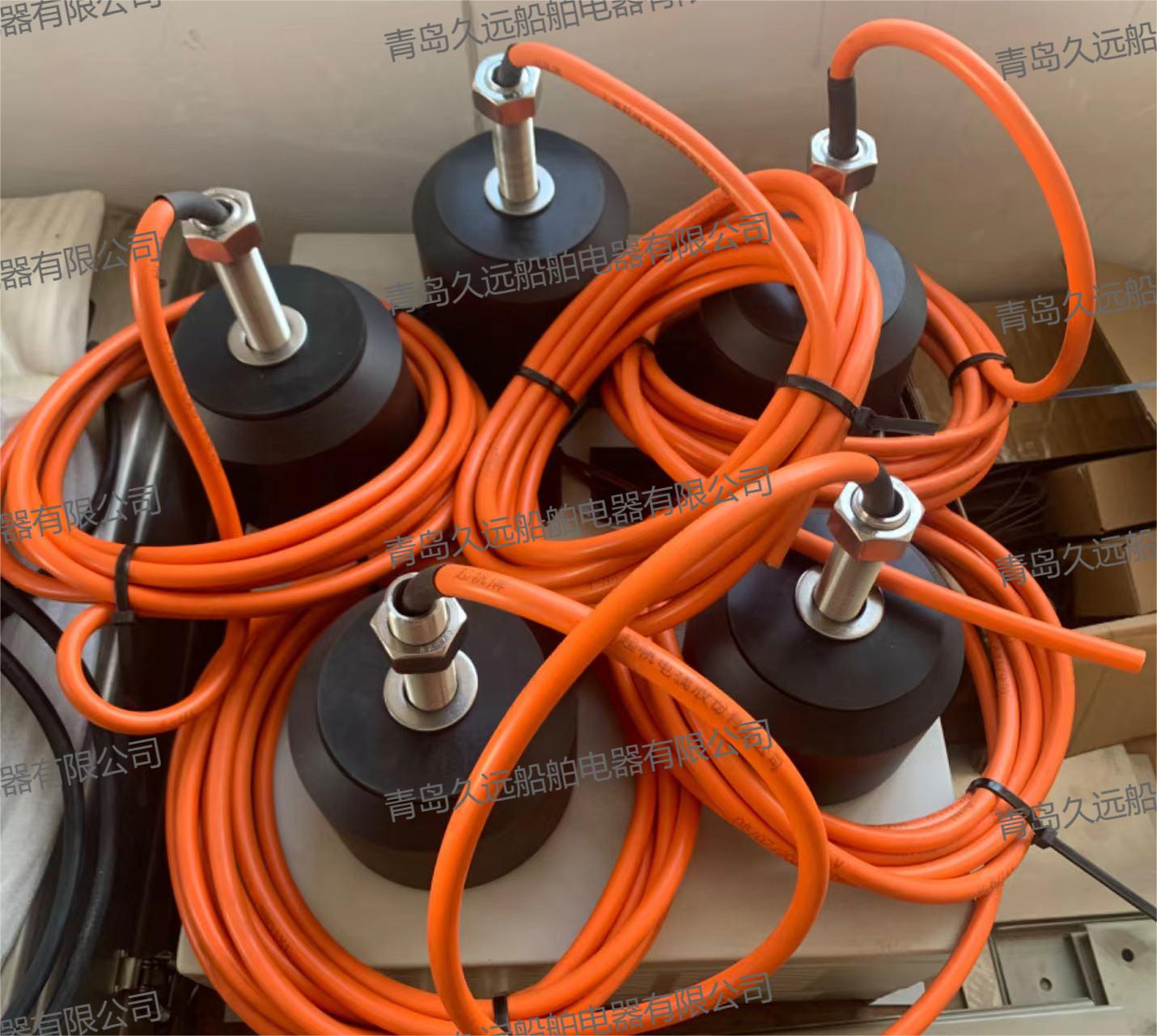

Reference Electrode
Engineer Service
A vital ICCP sensor, reference electrodes collect real-time hull potential signals and feed data back to control cabinets for precise constant-potential adjustment. Featuring stable potential, fast response, accurate measurement and seawater corrosion resistance, they deliver reliable potential monitoring for ships and offshore structures.
Before undocking, engineers issue official service reports for all above works, complete acceptance handover with ship electricians and senior crew, and elaborate daily maintenance & operation precautions of each system.
Marine Growth Prevention System(MGPS)

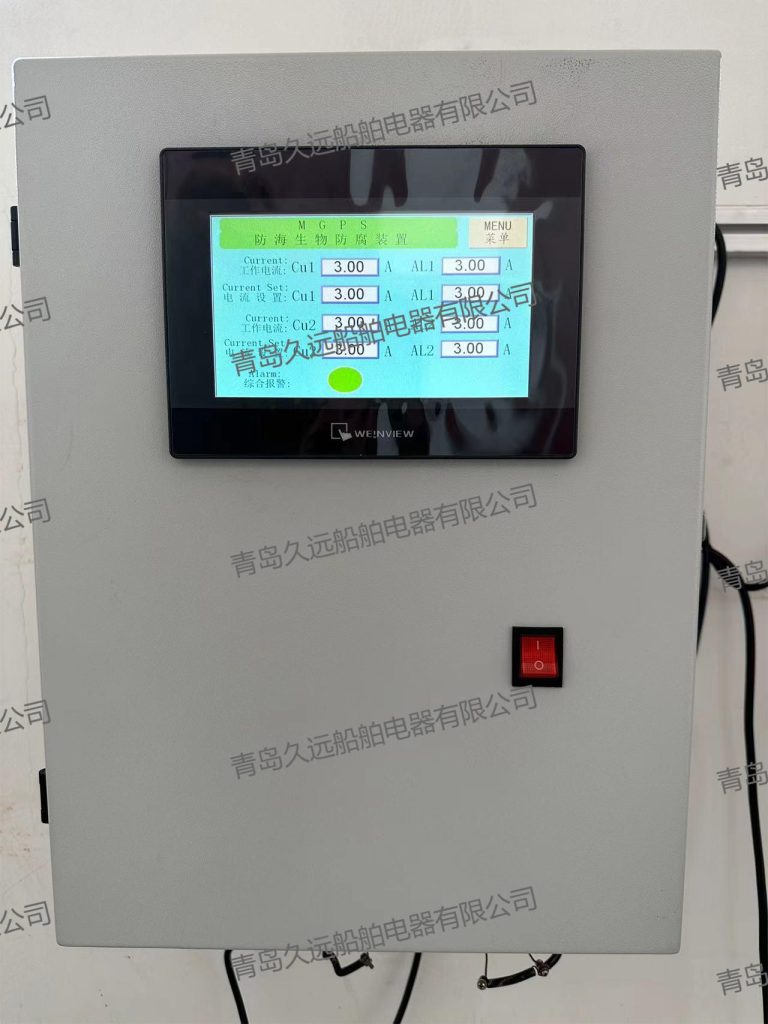

MGPS Control Box
As the core electrolytic antifouling controller, MGPS control box adjusts Cu-Al/Cu-Ag electrode current to generate antifouling metal ions and stop marine adhesion on seawater facilities. Marine-grade, multi-area adaptable, with parameter regulation, fault monitoring and alarms for reliable seawater circulation.
可按需求定制：2路/4路/6路/10路….

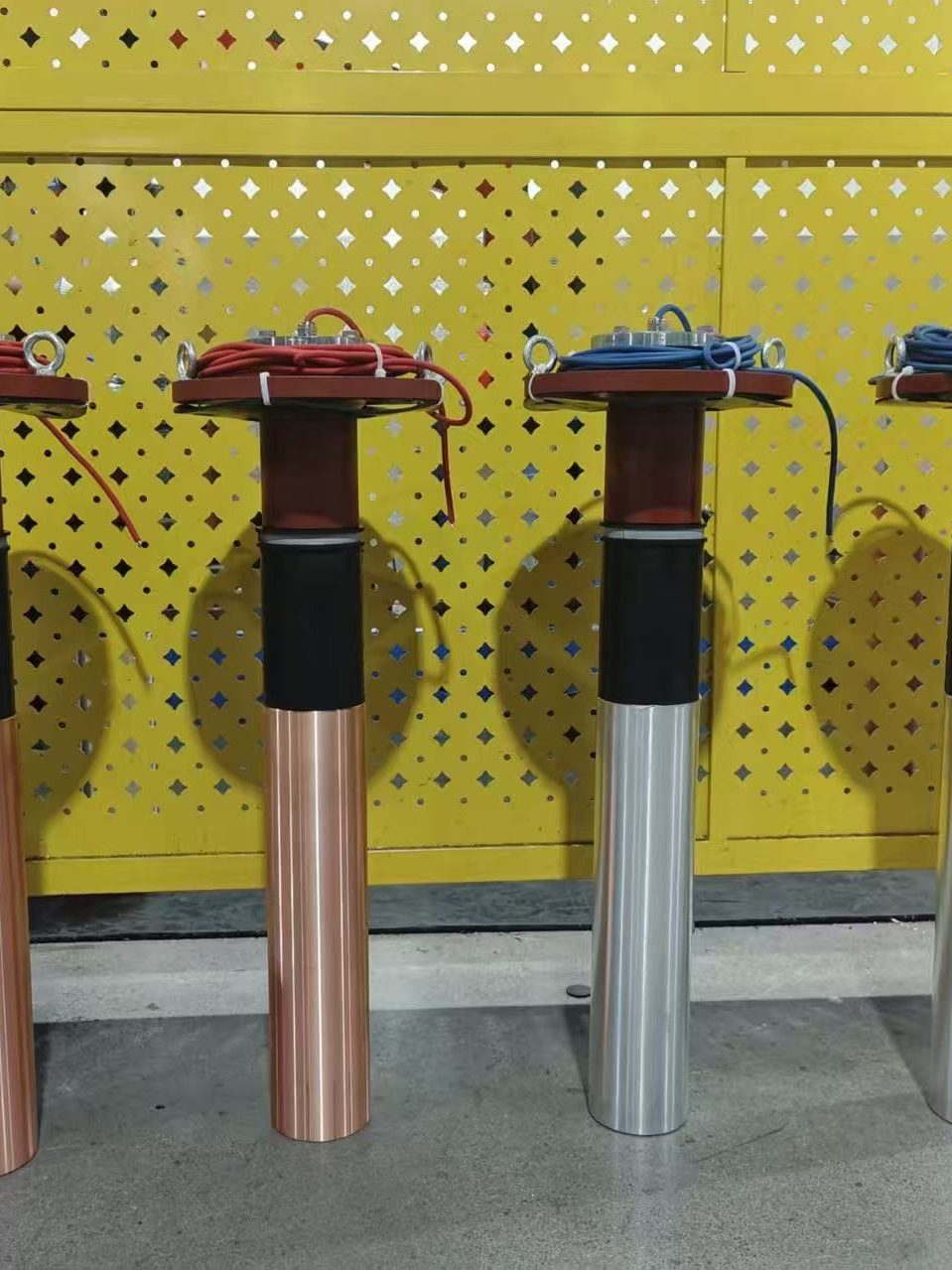

Electrode
MGPS electrodes, matching the control box, are the core execution parts of the anti-marine growth system. Powered electrodes release metal ions to form antifouling layers and prevent marine fouling on seawater pipes and tanks. Made of high-purity Cu-Al/Cu-Ag alloys, they offer seawater corrosion resistance, high electrolytic efficiency and even ion emission. Suitable for all sea zones, simple to mount and keep the vessel’s seawater circulation unimpeded.
Sizes and materials can be customized as required: copper electrodes, aluminum electrodes, iron electrodes...
Fitting Installation & Wiring
Engineer Service
Our engineers deliver professional on-site MGPS technical services. We work with shipyards to fit Cu-Al electrodes, run insulation tests, check wiring, test cabinets and simulate operating conditions. We submit service reports before undocking, support owner acceptance, explain maintenance tips and guarantee steady system performance at sea.
On-site Operation & Maintenance of Vessel MGPS System | Professional Technical Support | Undocking Acceptance and Handover
SES&RBS

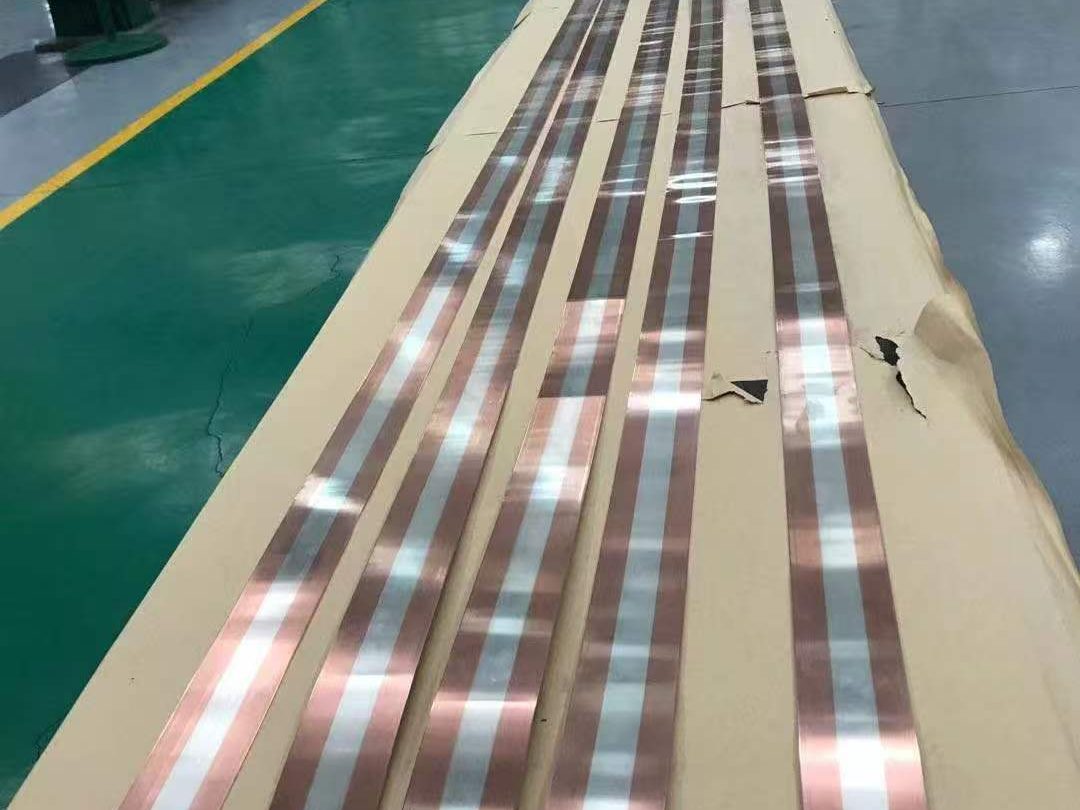

Slip Ring
Core slip rings for shaft earthing & ICCP, stable current transfer, anti-corrosion & anti-vibration, easy to install and maintain for all vessel shafts.
Copper-Silver Composite Slip Ring、Silver Slip Rings
Silver Carbon Brush
Core carbon brushes matched with slip rings for stable current transfer, anti-corrosion and wear resistance, easy maintenance for all marine shafts.
Custom sizes available
Carbon brush holder
Millivoltmeter
Core tester for marine ICCP, the millivoltmeter accurately collects millivolt voltage to monitor cathodic protection for parameter tuning and troubleshooting. Marine-suitable, precise and easy to operate, it ensures stable anti-corrosion performance.
Precise measurement, sensitive response, suitable for full-condition monitoring of marine ICCP systems
Sacrificial Anode
Aluminum Anode
Aluminum anodes are anti-corrosion fittings for marine ICCP systems. They deliver cathodic protection current to stop hull electrochemical corrosion. Suitable for harsh marine environments, they offer uniform discharge, long service life and easy installation.
Sizes and quantities can be customized as needed
Zinc Anode
Zinc anodes are core cathodic protection parts for ships. They emit protective current against seawater corrosion, fitting all underwater metal structures with stable discharge, great corrosion resistance, easy fitting and long lifespan.
Sizes and quantities can be customized as needed
